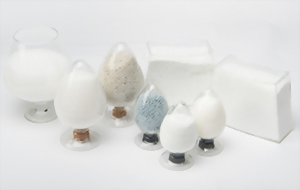

Nylon 6 Chip
For Engineering Plastics & Films
| Model | Applications | Features | Attachments | Physical | Comparison | Contact | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NP2400 Nylon
General Grade
|
Injection, pipe, masterbatch, etc. | Good Mechanical Properties, Oil Resistance, Impact Resistance, Electrical Properties Relative Viscosity(96% H2SO4):2.46
TS(ASTM):730 FM(ASTM):22000
Izod(ASTM,1/8"): 4 (23℃) Melt Flow Index(ASTM):105 |
To print, please click on the attached standard physical properties table.
|
|
|
|||||||||||||||||||||
|
NP2700 Nylon
General Grade
|
Injection, Tubing, Modification, Compounding with GF, etc | Good Mechanical Properties, Oil Resistance, Impact Resistance, Electrical Properties
Relative Viscosity(96% H2SO4):2.72
TS(ASTM):710 FM(ASTM):22000
Izod(ASTM,1/8"): 4.9 (23℃) Melt Flow Index(ASTM):54
|
To print, please click on the attached standard physical properties table.
|
|
|
|||||||||||||||||||||
|
NP2800 Nylon
General Grade
|
Injection, Tubing, Modification, Compounding with GF, etc | Good Mechanical Properties, Oil Resistance, Impact Resistance, Electrical Properties Relative Viscosity(96% H2SO4):2.85
TS(ASTM):710 FM(ASTM):22000
Izod(ASTM,1/8"): 5 (23℃) Melt Flow Index(ASTM):45 |
To print, please click on the attached standard physical properties table.
|
|
|
|||||||||||||||||||||
|
NP3200 Nylon
General Grade
|
Monofilament wire (fishing line, sewing thread), etc. | Good Mechanical Properties, Chemical Resistance, Oil Resistance, Impact Resistance, Puncture Resistance, Small Friction Coefficient, Good Electrical Properties Relative Viscosity(96% H2SO4):3.25
TS(ASTM):700 FM(ASTM):22000
Izod(ASTM,1/8"): 5 (23℃) Melt Flow Index(ASTM):20 |
To print, please click on the attached standard physical properties table.
|
|
|
|||||||||||||||||||||
|
NP3300 Nylon
General Grade
|
BOPA, Monofilament wire (fishing line, Sewing thread), Compounding with GF, etc | Good Mechanical Properties, Chemical Resistance, Oil Resistance, Impact Resistance, Puncture Resistance, Small Friction Coefficient, Good Electrical Properties Relative Viscosity(96% H2SO4):3.3
TS(ASTM):700 FM(ASTM):22000
Izod(ASTM,1/8"): 5 (23℃) Melt Flow Index(ASTM):19 |
To print, please click on the attached standard physical properties table.
|
|
|
|||||||||||||||||||||
|
NP3800 Nylon
General Grade
|
CPA, IPA, weeder head, monofilament wire |
Good Mechanical Properties, Chemical Resistance, Oil Resistance, Impact Resistance, Puncture Resistance, Small Friction Coefficient, Good Electrical Properties Relative Viscosity(96% H2SO4):3.8
TS(ASTM):700 FM(ASTM):22000
Izod(ASTM,1/8"): 5 (23℃) Melt Flow Index(ASTM):9 |
To print, please click on the attached standard physical properties table.
|
|
|
|||||||||||||||||||||
|
NP4000 Nylon
General Grade
|
CPA, IPA, weeder line, monofilament wire (fishing line, sewing line, brake line) | Good Mechanical Properties, Chemical Resistance, Oil Resistance, Impact Resistance, Puncture Resistance, Small Friction Coefficient, Good Electrical Properties Relative Viscosity(96% H2SO4):4.0
TS(ASTM):700 FM(ASTM):22000
Izod(ASTM,1/8"): 5 (23℃) Melt Flow Index(ASTM):8 |
To print, please click on the attached standard physical properties table.
|
|
|
